Shielded nuclear medicine isolator for safe Tc-99m generator elution, radiotracer preparation and radioactive material handling. Configured around each department’s workflow, generator capacity and dose-calibrator requirements.

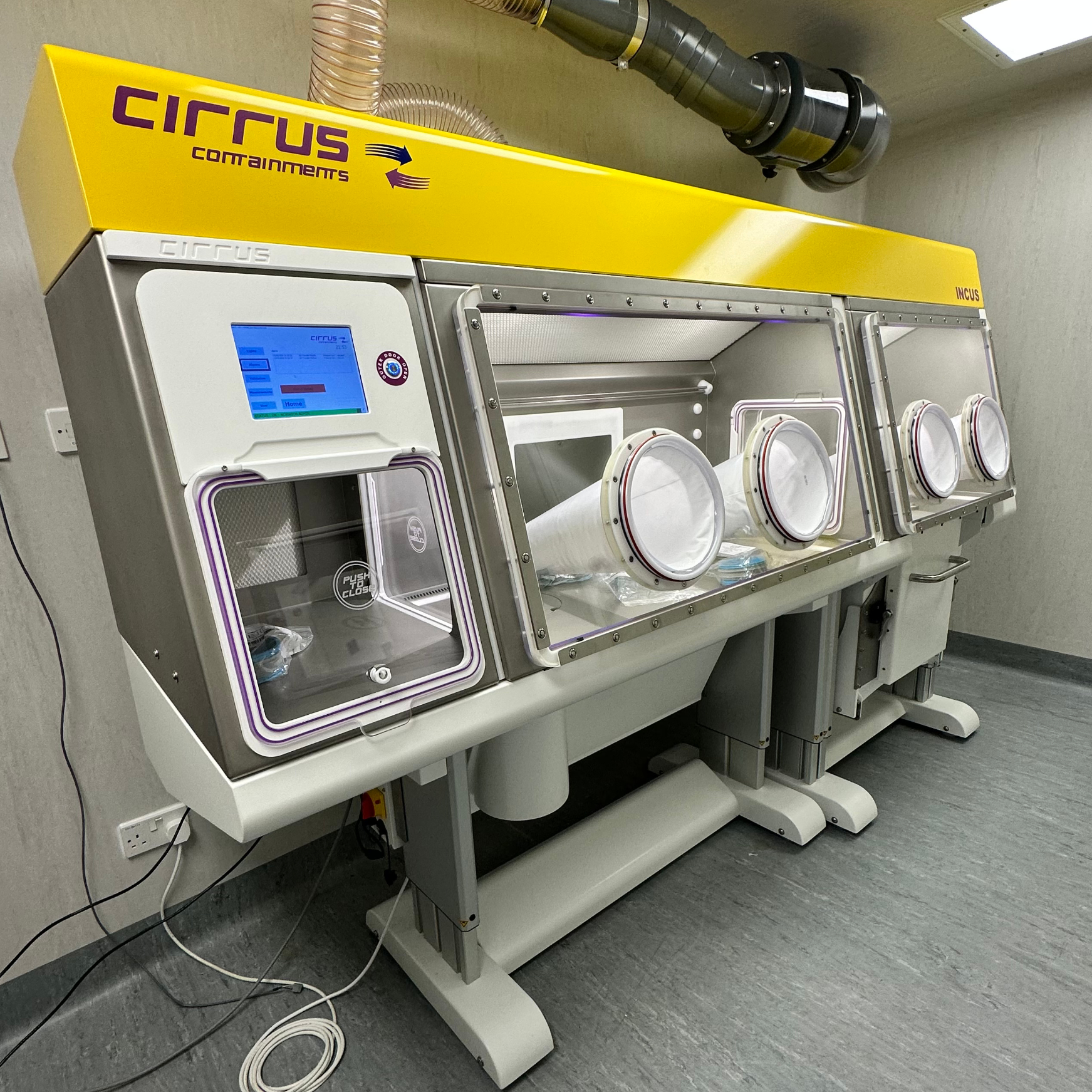

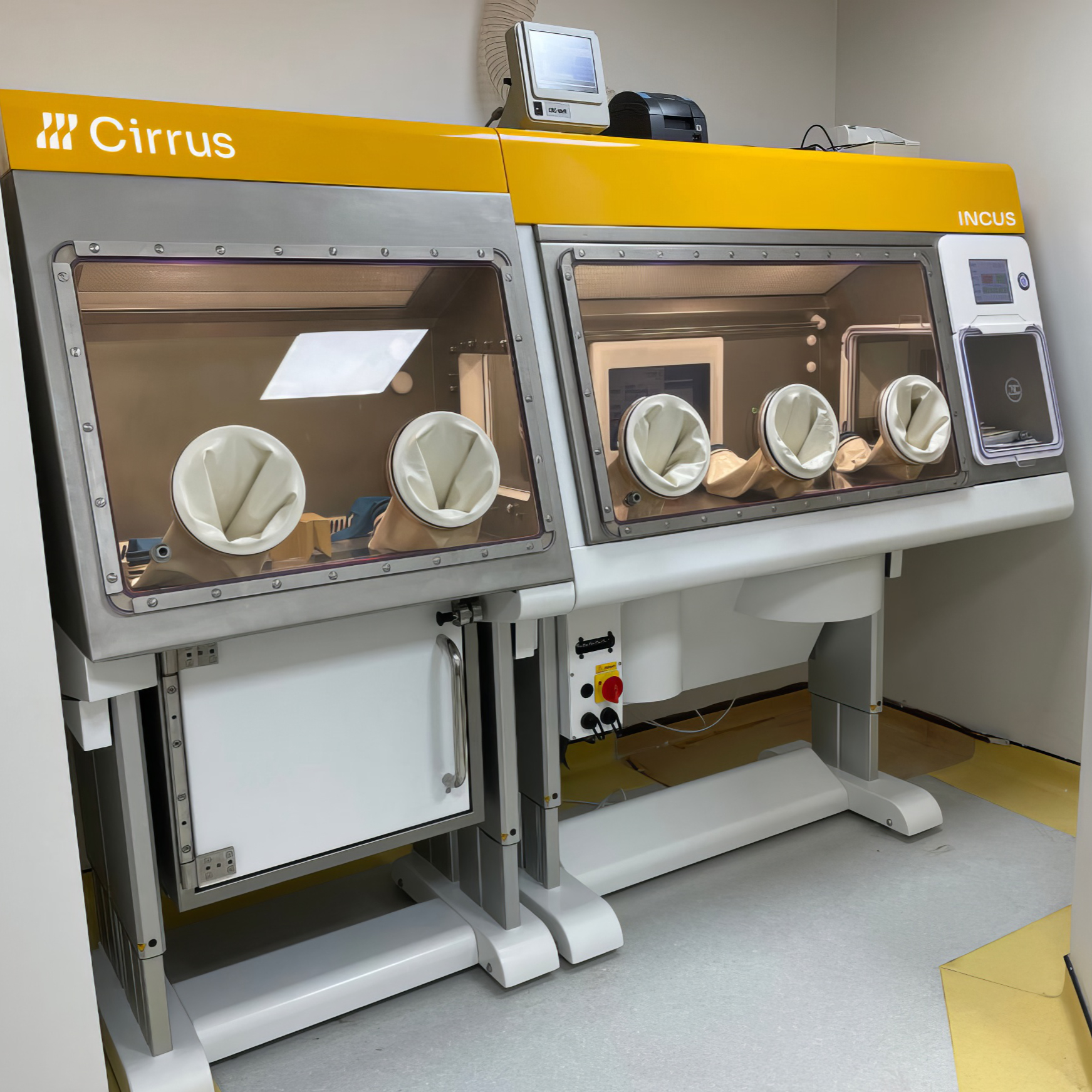

The INCUS is a purpose-built shielded isolator for Technetium (Tc-99m) generator elution in nuclear medicine departments. Designed to protect operators and the environment without compromising workflow, it combines lead-equivalent shielding, lead glass viewing panels, and negative pressure containment — built on the same proven platform as our ALTO pharmaceutical isolator range.
Every INCUS is configured to your department's specific requirements — generator capacity, glove port configuration, and dose calibrator integration are all agreed as part of the specification process.
Applications
Radiotracer Preparation
Activity Measurement
Radioactive Material Handling
Cirrus Yellow is supplied as standard.
Yellow
Key Benefits
Negative pressure containment, lead-equivalent shielding, and lead glass viewing panels — engineered to protect operators and the environment throughout every procedure.
The INCUS shares its core architecture with the ALTO — the same 3mm 316L stainless steel construction, EU14 HEPA filtration, HMI touchscreen control system, and in-house software. Familiar, reliable, and fully supported.

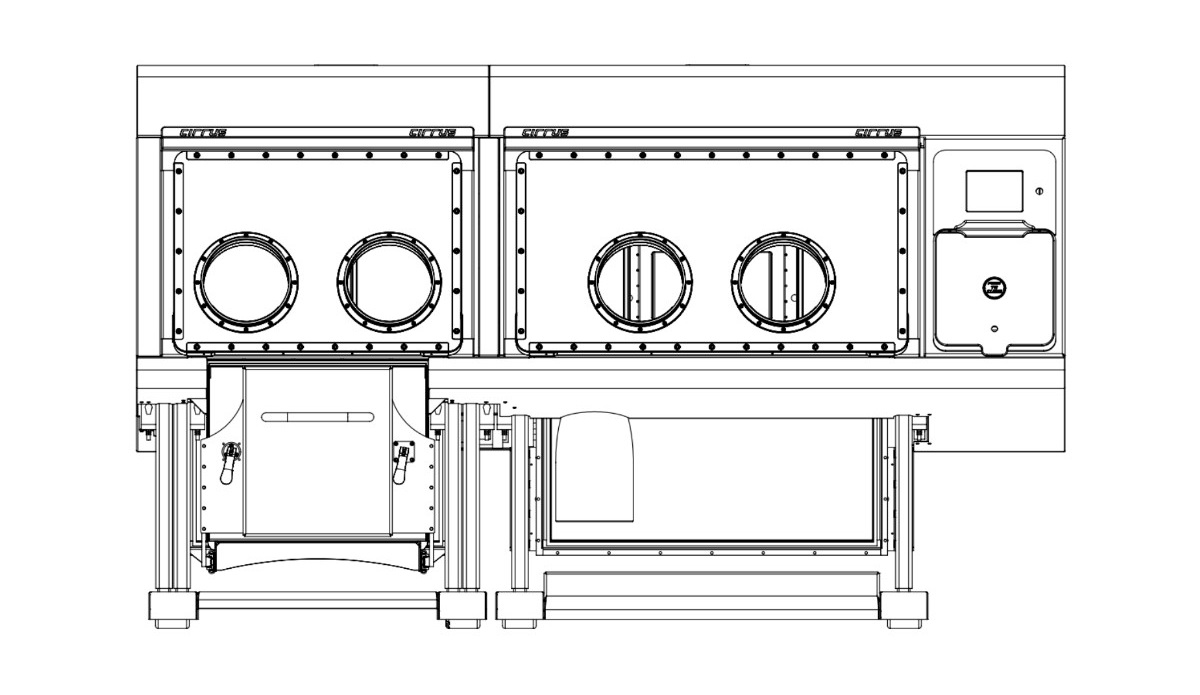

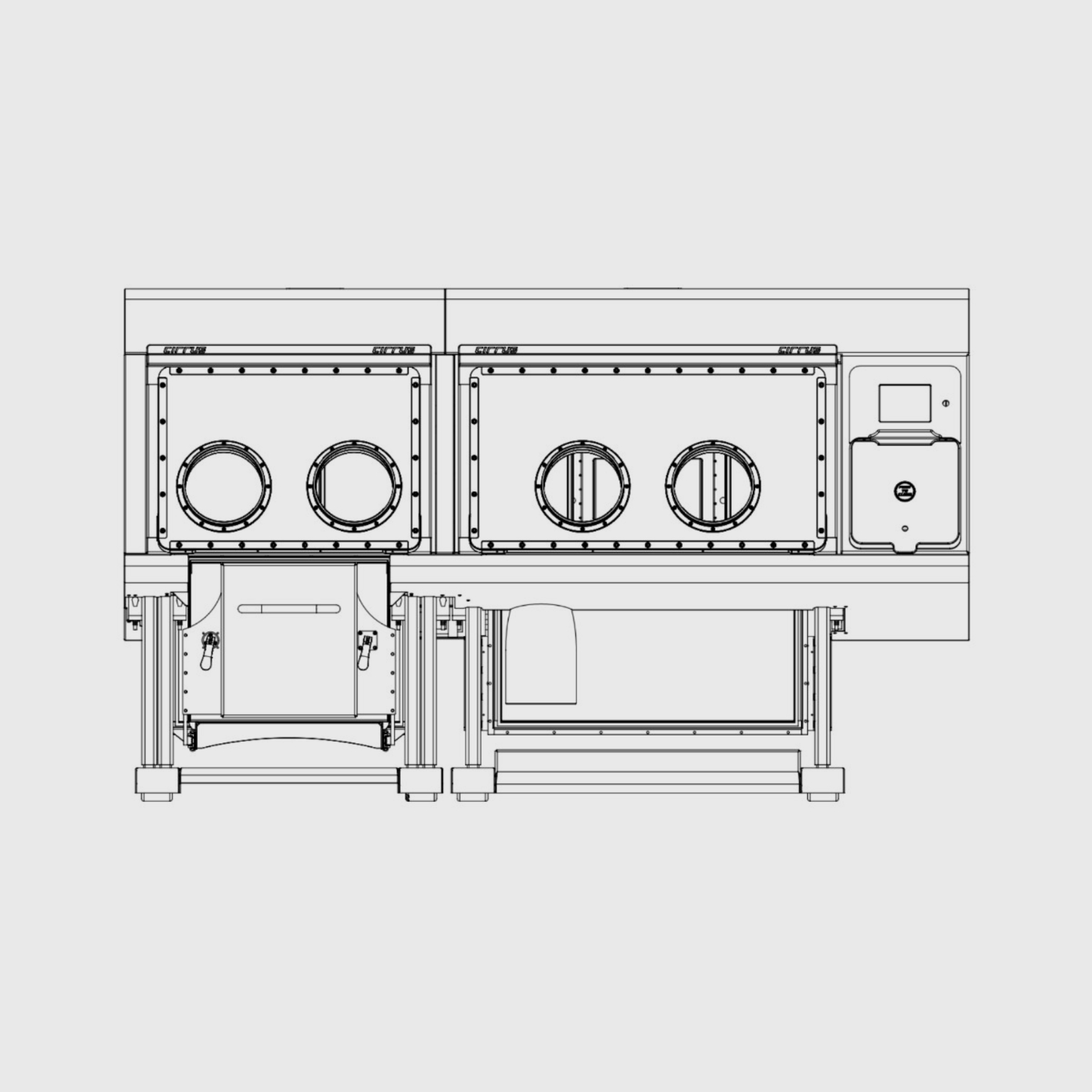

Available with 2, 3, or 4 glove process modules. Standard 2-generator elution module, with 4-generator capacity available.
When connected to the facility network, issues can be identified and often resolved without an on-site visit — minimising downtime in a critical clinical environment.
FAT completed prior to dispatch. IQ, SAT, and OQ documentation supplied and completed at commissioning.
Technical Specifications
| INCUS 2-Glove | INCUS 3-Glove | INCUS 4-Glove | Notes | |
|---|---|---|---|---|
| External dimensions (mm) | TBC | TBC | TBC | W × D × H |
| Process chamber width (mm) | TBC | TBC | TBC | |
| Glove ports | 2 × 200mm | 3 × 200mm | 4 × 200mm | Alternatives on request |
| Weight (kg) | TBC | TBC | TBC |
Request a technical datasheet for full dimensional data and alternative configurations.
| Feature | Specification |
|---|---|
| Primary application | Tc-99m generator elution |
| Pressure | Negative |
| Shielding | Lead equivalent |
| Viewing panels | Lead glass |
| Airflow | True Flow unidirectional or turbulent |
| Filtration | EU14 HEPA across all modules |
| Elution module | 2-generator as standard |
| Dose calibrator | Integrated as standard — compatible with multiple supplier models |
| Transfer modules | Type D, fully interlocked |
| Glove ports | 200mm as standard — alternatives on request |
| Construction | 3mm 316 stainless steel, bead-blasted and chemically cleaned |
| Base | Continuous stainless steel — spill containment |
| Lighting | Integral LED, ≥500 lux at work surface |
| Power | 220–240VAC, 50/60Hz, single phase |
| Control system | HMI menu-driven touchscreen |
| Remote diagnostics | Via facility network |
Customisation Options
The INCUS is compatible with a range of dose calibrator models from established suppliers. Integration is specified at Design Qualification to ensure the right fit for your department and workflow.
Rear multi-touch touchscreen with networked PC, integrated into the process module. View procedures, worksheets, and measurement data without removing hands from the gloves — improving accuracy, efficiency, and supporting GMP workflows.
Fixed or PTZ HD camera options available. Network-capable, supports session recording for audit and training purposes.
Our in-house team can accommodate a wide range of bespoke requirements. If you have a specific need, just ask.
Related Configurations
The Combined INCUS-STRATUS integrates both functions into a single shielded isolator.

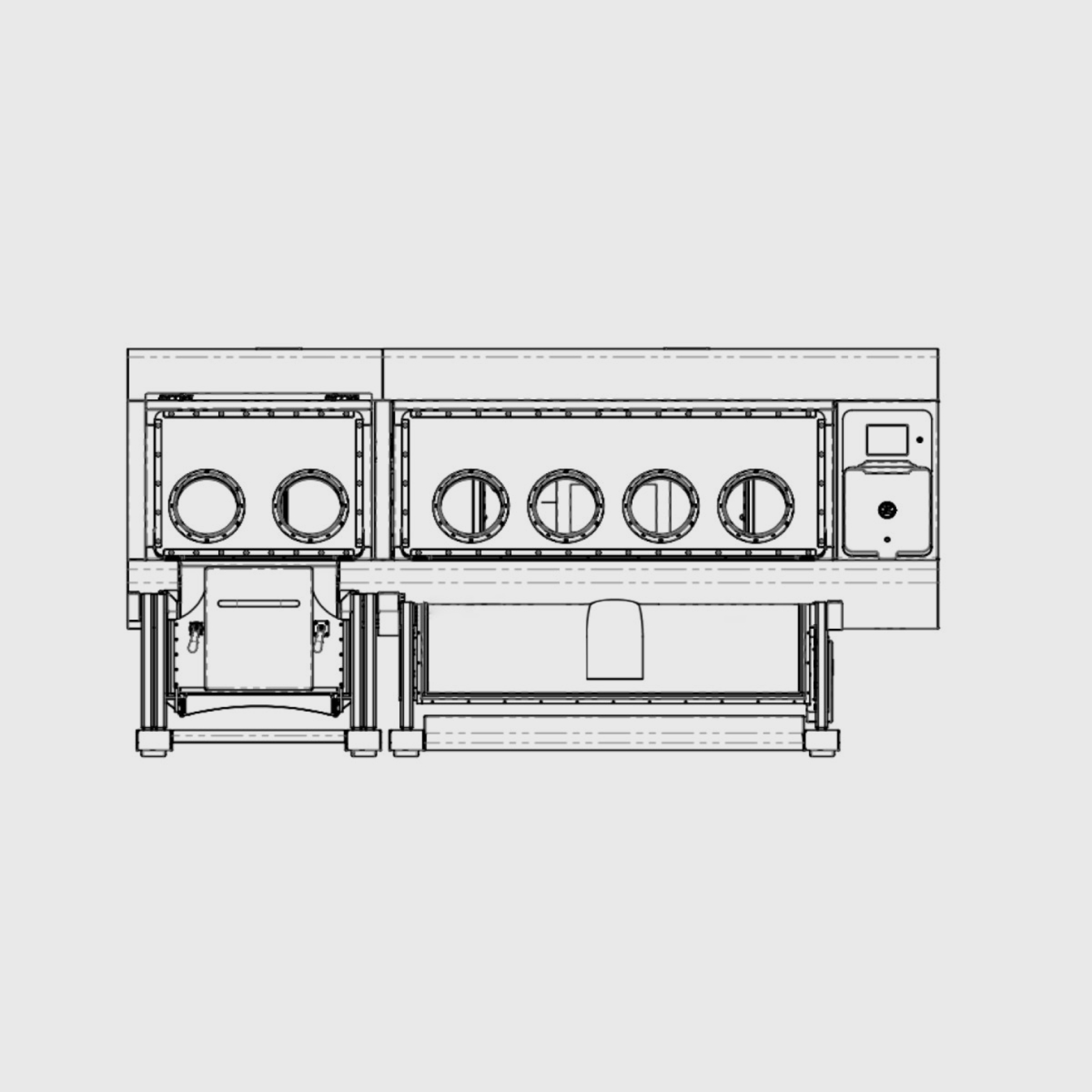

For departments requiring higher throughput or dual generator capacity, the INCUS Dual features two process chambers — accommodating up to 4 Tc-99m generators across both elution modules.
